And so it starts...

Hello, and once again welcome to the Welwyn Machine Works blog! I'm going to be using this blog to document my first bike frame build, partly as a record for myself and hopefully as a resource for other novice builders (if only so they can avoid mistakes i'm bound to make along the way).

I've been toying with the idea of building a mountain bike frame for quite a few years now and only recently has it started to all come together. Back in 2003 i came across an article in the Sept/Oct issue of DIRT on Brooklyn Machine Works' FQ Mini link, and it just caught my imagination: http://www.brooklynmachineworks.co.uk/closeups.html?image=gedmini-dirt-sepoct03.jpg

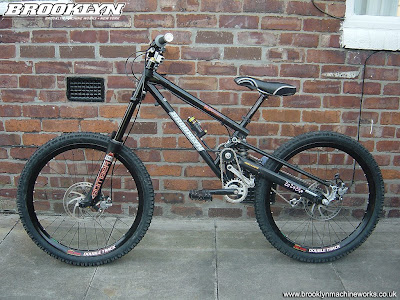

The expense of the BMW frames combined with a lack of riding prowess meant i could never really justify getting such a high end frame. However i enjoy designing and building stuff so maybe i could build my own version. Initially i was aiming to copy the main features of the BMW's race link - high pivot point, jack drive (two chain system) to isolate peddeling from suspension action and low centre of gravity - (see photo below.. you'll also probably have noticed where i got the idea for the name of the bike/blog :-)).




To cut a long story short between starting this project five years ago and where it is today there has been quite a bit of design progression - many ideas had and designs penned (i'll try to collect together info on the more intersting stuff at some point). Generally the designs were getting more complicated, which brings with it potential fabrication and maintanance issues.

The final round of last years Dragon Downhill series at Pen-yr-heol farm near Caerphilly , South Wales, really helped inform the design of the frame i am trying to build. The downhill race was held in mid October on top of a rain-swept hill. The course was freshly cut and it pissed it down all weekend, the track got broken in and then some. Basically it turned in to a mud-fest.. check it out: http://uk.youtube.com/watch?v=3K2ovDJjsOQ It was tricky riding, but damn good fun too. The mud was getting everwhere, clogging up wheels and destroying gears and grinding pivots. Massive mud clearance and drivetrain simplicity and minimal pivots would have been a real bonus here.

Basically i came away from that race thinking i should really try to simplify the design and construction as much as possible. Make it as easy as possible to fabricate with my limited resources and experience. I also took the decision to build this frame as a singlespeed - this was based on a few observations: i don't tend to shift through gears much on a downhill run (when i need to get back to the top i'll just push), and some of much cleanest runs i had during last years Dragon Downhill series were during the chainless seeding runs where the idea was to conserve and if possible increase momentum by pumping the track and laying off the brakes rather than relying on peddeling. This seemed to work for me as it forced be to think about whether i really needed to brake. Though occasionally it would have been useful to have had the ability to put a couple of pedal strokes in to get back up to speed if you slow right down e.g. exiting from a tight corner.

Therefore the revised design aims for this downhill bike were as follows:

• 170-180mm travel
• rearward wheel travel
• single pivot simplicity (ignoring the fancy shock linkages)
• maximum mud clearance
• singlespeed - again for simplicity and quietness
• constructional simplicity (nearly all the expierienced framebuilder advise on building a hardtail as first frame.. but wheres the fun in that!)

Finally.. below is an image (could almost be called an 'artists impression') showing roughly what the finished bike will hopefully look like. In a future post i may run through a few of the frame details and thinking behind them, until then this'll give you an idea of what i'm gunning for:

Sorry for the long introductory first post, hopefully from now on they'll be a bit more lightweight.. more pictures less text.

Cheers,

Mark.
